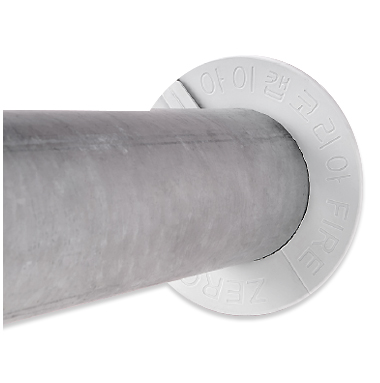

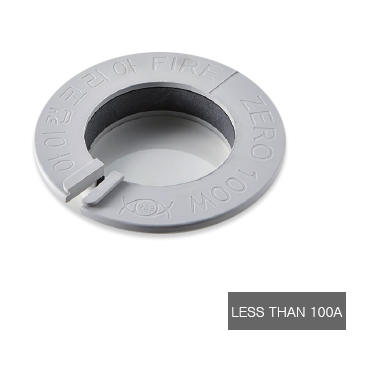

SIDEWALL PENETRATING PANEL OF STEEL PIPE

• Features and Benefits

  01. It does not require a sleeve when it is used on lightweight gypsum board.
  02. It is a standardized product that allows anyone to easily carry out their jobs.
  03. Outstanding flame barrier due to integrated type of FB STRIP (Firestop strip)
  04. Outstanding thermal barrier due to the use of NB MAT(Thermal insulating materials)

• Installation Guide

  01. Please comply with the table of sleeve standard (Move on click).
  02. It allows you to save not only labor cost, but efforts for troubleshooting caused by eccentricity if you install fire resistant materials along with setting up riser pipeline and sidewall penetrating pipeline.
  03. Pipe sleeves and pipe clamps work best when they are used together to fix riser pipeline because they will make the new installation more secure, and they will help you to save cost and achieve quality work.

SIDEWALL PENETRATING PANEL OF STEEL PIPE

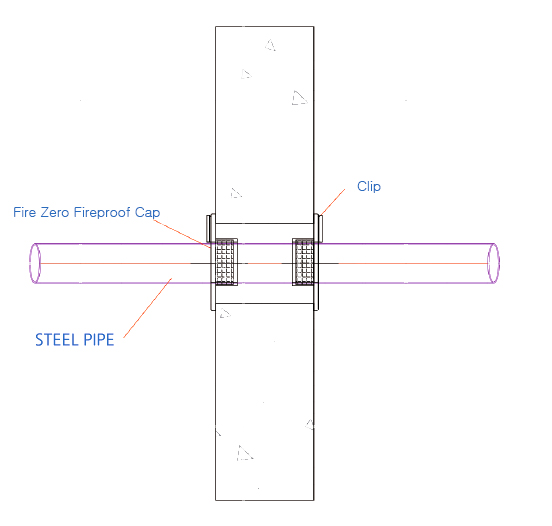

• Sidewall STEEL less than50A



  1. Check the specification of a penetrating sleeve.
  2. Put a Firezero Cap around the pipe
  3. Fix the Firezero Cap using a clip
  4. Insert the Firezero Cap until it reaches to sidewall (Work on both sides)

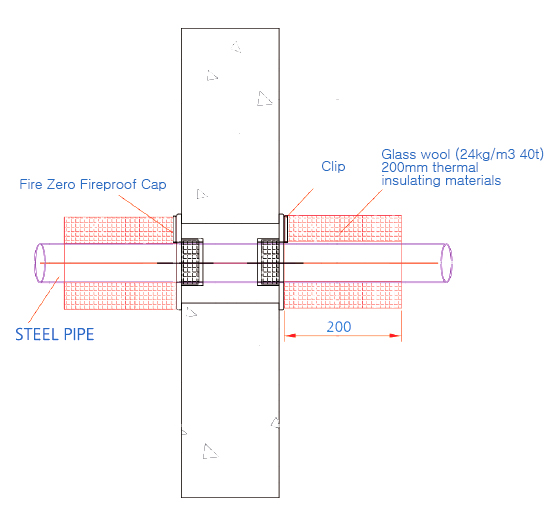

• Sidewall STEEL less than 65 - 100A



  1. Check the specification of a penetrating sleeve.
  2. Put a Firezero Cap around the pipe.
  3. Fix the Firezero Cap using a clip.
  4. Insert the Firezero Cap until it firmly reaches to sidewall.
  5. Install glass wool pipe cover (24kg/m3 40t) to a point 200mm above the floor (both sides)

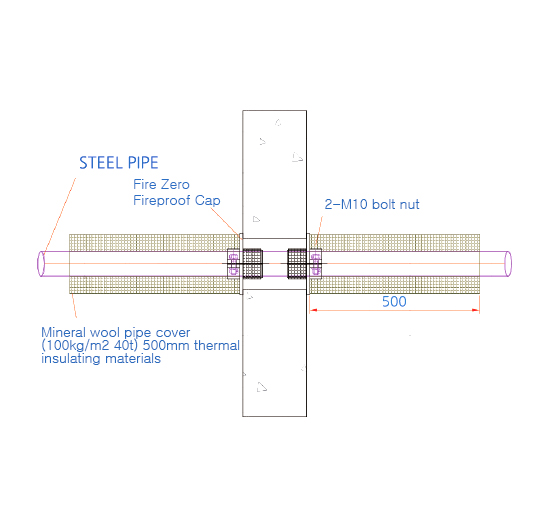

• Sidewall STEEL less than 125 – 150A



  1. Check the specification of a penetrating sleeve
  2. Put a Firezero Cap around the pipe.
  3. Fix the Firezero Cap using bolt, nut, and washer, and insert until it reaches to sidewall
  4. Install mineral wool pipe cover (100kg/m3 40t) to a point 500mm from sidewall (Work on both sides)

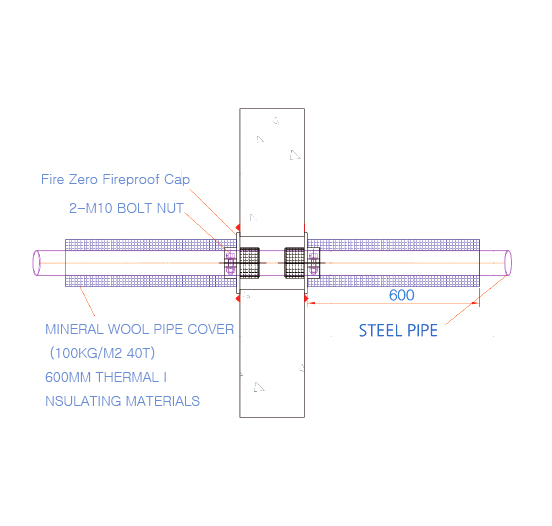

• Sidewall STEEL less than200A



  1. Check the specification of a penetrating sleeve.
  2. Put a Firezero Cap around the pipe.
  3. Fix the Firezero Cap using bolt, nut, and washer, and insert until it reaches to sidewall.
  4. Apply Firestop sealant to the points where pipelines and the Firestop board meet, and the sidewall and the Firestop board meet
  5. Install mineral wool pipe cover (100kg/m3 40t) to a point 600mm from sidewall (Work on both sides)
