Insulation Cap, detecting overheat
Overheat can be visually checkedby naked eyes without any equipment!

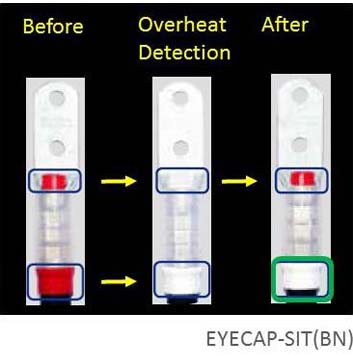

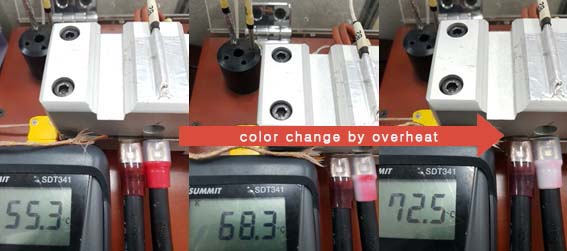

EYECAP changes its color to white when overheat is detected
» Anybody can visually check overheat by the color change by glancing without any equipment.
» Silicone material and special dyes detect overheat on cables and terminals.
» Crimping check by its transparent design, preventing loose connection of Cable and Lug
» When the temperature is back to normal the changed colors also comes back to normal. – Reversible

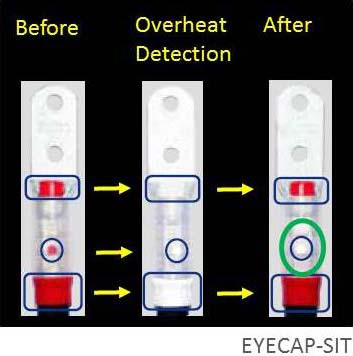

» But when the temperature is back to normal, the Ir-reversible dot or band doesn’t come back to its original color as “overheat history” ;
Overheat history guarantees no way out for oversight of overheat
OVERHEAT HISTORY
-
» Dot is lr-reversible
-
» Band is lr-reversible
» More Easy to find!
» UL 224-The Standard for Extruded Electrical Tubing
» RoHS DIRECTIVE 2011/65/EU.
» REACH Regulation(EC) No. 1907/2006

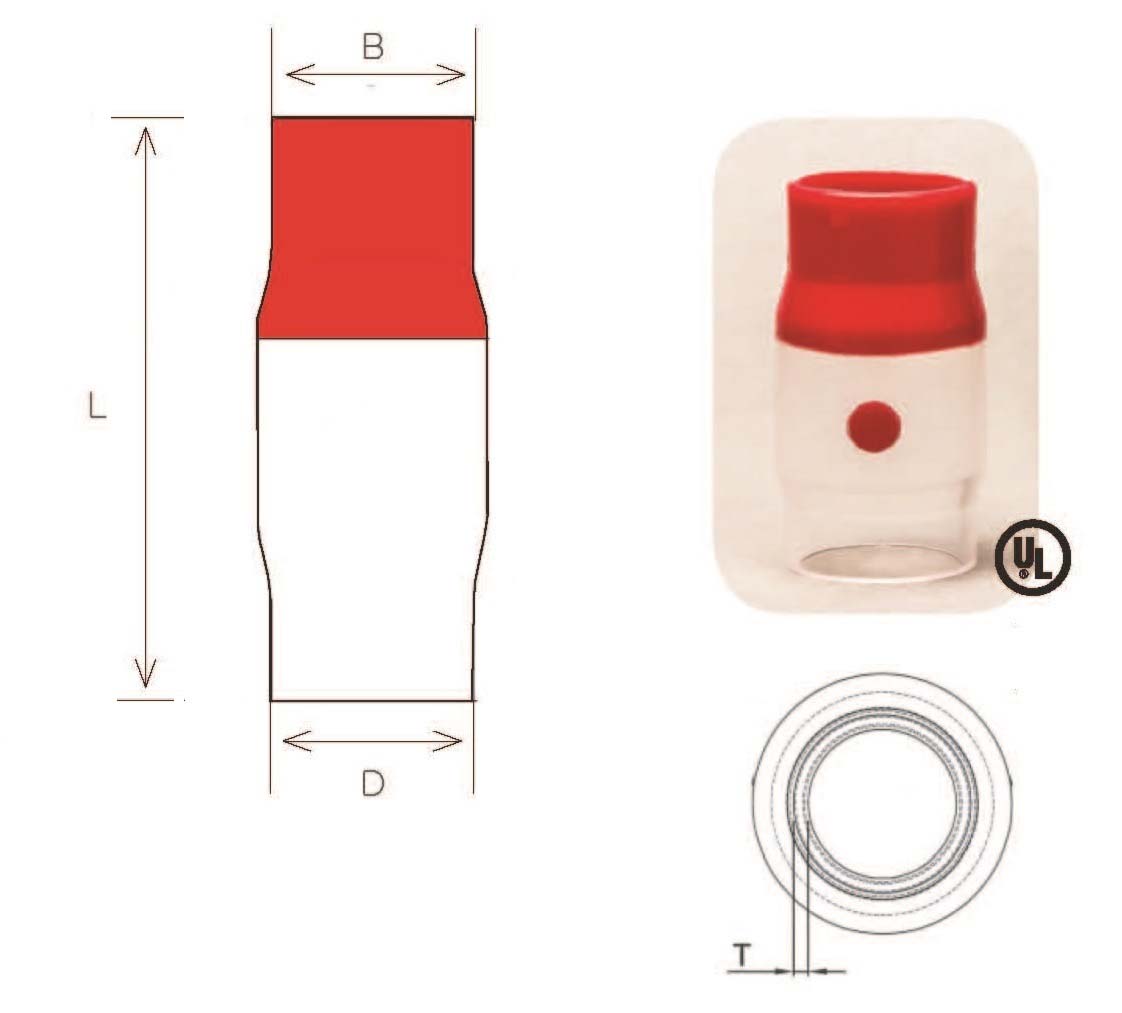

EYECAP-SIT(A) - For Solderless Terminal Lug
-
(Unit: mm)
Specification D B L T ICE AWG 1.5SQ 16,18,20 3.16 3.00 13.70 0.80 2.5SQ 14~16 3.83 3.70 14.40 0.80 4SQ 12~14 4.53 4.40 16.00 0.90 6SQ 10~12 5.00 5.19 18.00 1.00 10SQ 8 7.10 6.50 21.00 1.10 16SQ 6 9.00 7.70 24.00 1.14 25SQ 4 10.25 10.20 31.21 1.25 35SQ 2~3 10.71 10.70 35.00 1.30 50SQ 1 11.60 12.80 37.70 1.50 70SQ 1/0 14.60 14.00 39.00 1.60 95SQ 2/0 16.60 16.10 43.50 1.64 120SQ 3/0 21.60 19.70 48.50 1.75 150SQ 4/0 23.40 20.60 56.65 1.85 185SQ 250~300kcmil 25.93 24.40 64.00 1.90 240SQ 350~400kcmil 30.13 26.80 70.00 2.00 300SQ 450~500kcmil 35.19 30.70 76.00 2.16
※T - Average thickness ±10%. All other dimensions are restricted to ±15% tolerance. Specification may change without prior notification for better performance.

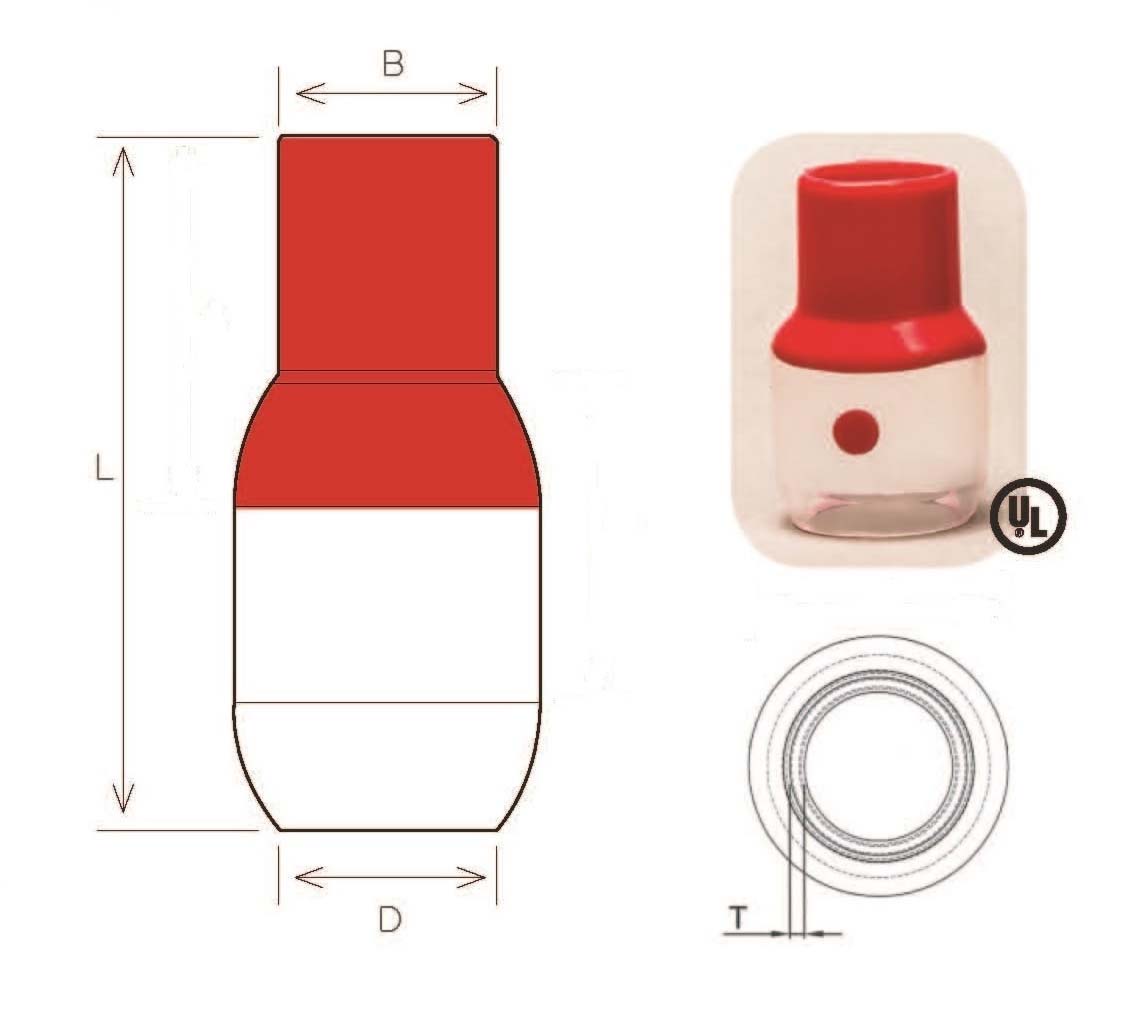

EYECAP-SIT(B) - for Tubular Terminal lug 2-Hole
-
(Unit: mm)
Specification D B L T ICE AWG 25SQ 6 8.90 8.50 35.80 1.00 35SQ 4 10.40 10.00 38.90 1.10 50SQ 2~1 13.20 12.20 43.00 1.20 70SQ 1/0 15.60 14.60 49.00 1.50 95SQ 2/0 17.06 17.06 57.94 1.60 120SQ 3/0 19.50 19.50 61.94 1.60 150SQ 4/0~250kcmil 21.80 21.72 67.50 1.70 185SQ 300kcmil 24.30 24.30 76.20 1.70 240SQ 350~400kcmil 28.90 28.90 85.50 1.80 300SQ 450~500kcmil 30.82 30.82 95.28 1.90 400SQ 550~650kcmil 35.00 35.00 101.00 2.10 500SQ 700~800kcmil 39.50 38.12 107.00 2.40
※T - Average thickness ±10%. All other dimensions are restricted to ±15% tolerance. Specification may change without prior notification for better performance.

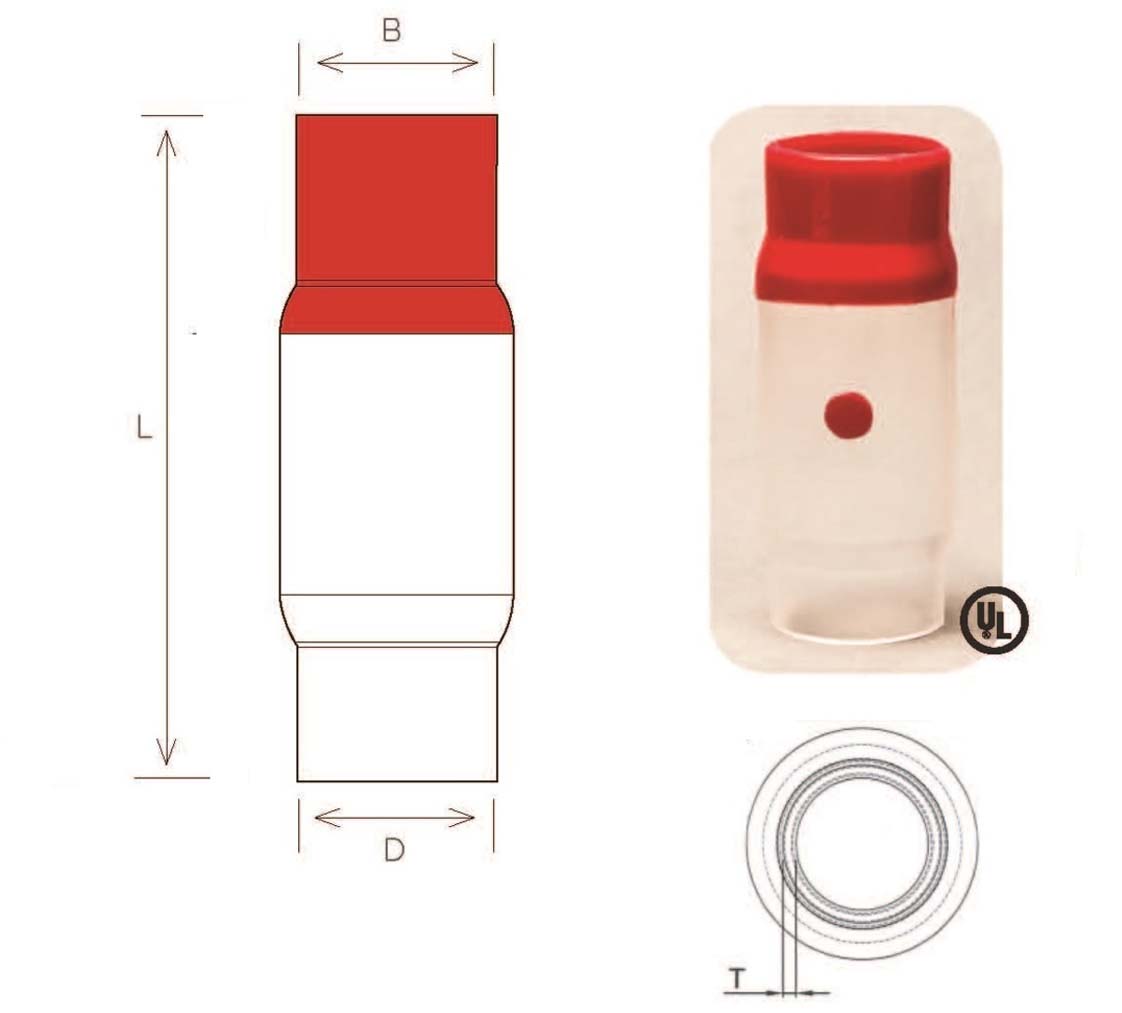

EYECAP-SIT(C) - for Tubular Terminal lug 1-Hole
-
(Unit: mm)
Specification D B L T ICE AWG 25SQ 6 9.00 9.00 25.50 1.20 35SQ 4 10.70 11.40 28.00 1.20 50SQ 2~1 12.10 12.60 34.00 1.50 70SQ 1/0 15.06 15.36 39.00 1.50 95SQ 2/0 17.50 16.96 44.27 1.60 120SQ 3/0 20.00 19.60 48.50 1.60 150SQ 4/0~250kcmil 21.90 21.98 55.00 1.70 185SQ 300kcmil 24.60 24.60 56.90 1.70 240SQ 350~400kcmil 29.74 29.20 64.00 1.80 300SQ 450~500kcmil 30.82 30.82 72.96 1.90
※T - Average thickness ±10%. All other dimensions are restricted to ±15% tolerance. Specification may change without prior notification for better performance.
