  1. What's Fire Preventive Block?
  2. FIREZEROCAP APPLICATION
  3. FIRESTOP Product comparison

What's Fire Preventive Block?

  • 1

    When a building which is over 1,000 m2 in total floor area and structured with fire-resistant or incombustible materials, the building shall be separated into partitions by floor, walls and fire doors (including automatic shutters) that are made of fire-resistant materials to stop the fire from being spread into entire building.

    2

    Types of firestop sealing vary depending on its purpose, floor, and vertical penetration.

    3

    Firestop sealing shall be properly designed depending on the purpose, size, and shape of a building, and the fire resistant materials used for floor, walls and fire doors (fire shutters) shall endure fire for a certain number of hours.

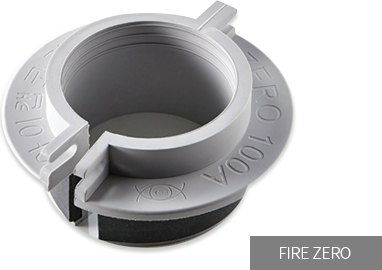

FIREZEROCAP APPLICATION

  • Apartment / Accessary building

    Classification Bathroom floor Pipe Duct floor Shelter - Others Balcony
    Top floor Not applicate One side of Firezero Cap Firestopstrip or Firestop jacket Not applicate
    Middle floor Not applicate One side of Firezero Cap Firestopstrip or Firestop jacket Not applicate
    Ground floor Not applicate One side of Firezero Cap Firestopstrip or Firestop jacket Not applicate
    Classification Exhaustion area Non-exhaustion area Remarks
    Sidewall (bathroom / fire extinguisher) plumbing Floor Sidewall (bathroom / fire extinguisher) plumbing Floor
    Top floor Both sides of Firezero Cap Both sides of Firezero Cap Both sides of Firezero Cap Not applicate
    Middle floor Both sides of Firezero Cap Both sides of Firezero Cap Both sides of Firezero Cap Not applicate
    Ground floor Both sides of Firezero Cap Both sides of Firezero Cap Both sides of Firezero Cap Not applicate

    Underground parking lot, Machinery room, Underground water reservoir, Electricity room, Underground accessary building, etc.

    Classification Firewall Normal wall Firewall between floor Remark
    Building underground Both sides of Firezero Cap Not applicate One side of Firezero Cap In accordance with fire safety regulations,
    it shall be installed in a placewhere fire or
    flooring will not damage a fire extinguisher or
    electric devices.
    Underground parking lot Both sides of Firezero Cap Not applicate One side of Firezero Cap
    Machinery room Both sides of Firezero Cap Not applicate One side of Firezero Cap
    Electricty room Both sides of Firezero Cap Not applicate One side of Firezero Cap
    Joint room Both sides of Firezero Cap Not applicate One side of Firezero Cap
    Vent Fan room Both sides of Firezero Cap Not applicate One side of Firezero Cap

FIRESTOP Product comparison

  • COMPARISION TABLE

    Classification FIREZERO CAP
    Product product
    Materials used Complete product type of FIREZERO
    Working method Easy installation as it’s already complete product
    Whether a need to hire a professional labor X
    Maintenance No need for maintenance
    (But, if necessary, simply changeable)
    Level of pipe support Very high
    Use of thermal insulating materials No need to use for thermal insulating materials less than 60.5mm
    Application on new piping Applicable on new piping
    Mechanical strength after installation Very high

  • COMPARISION TABLE

    Classification FIREZERO CAP
    Product product

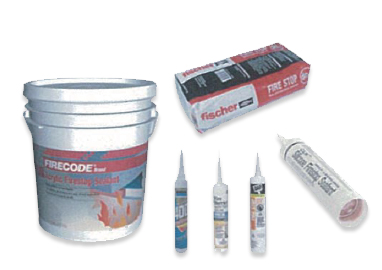

    Materials used Various Firestop materials are required such as Firestop sealant, Firestop strip, Firestop board, and mineral wool. (It may differ from companies.)
    Working method Each Firestop product needs to be installed in a certain order to comply with its own certificate system
    Whether a need to hire a professional labor O
    Maintenance It has to be redone from the beginning to comply with their own certificate system
    Level of pipe support Very low
    Use of thermal insulating materials Thermal insulating materials shall be used for all pipe diameters.
    Application on new piping Damage on fireproof function due to new piping
    Mechanical strength after installation Very low

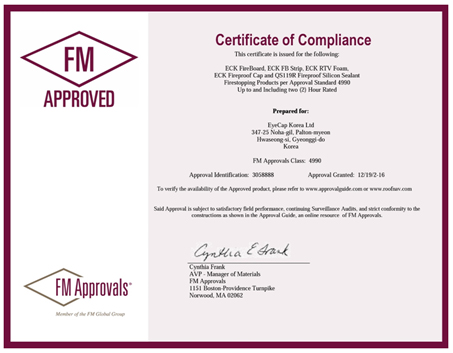

  • Certificate of “FM APPROVED”

    - The FM APPROVED mark is recognized and respected worldwide.
     Our certification instills confidence and commands respect in the marketplace
    - It is the only Korean Firestop system as of .December 2017 in Korea.
